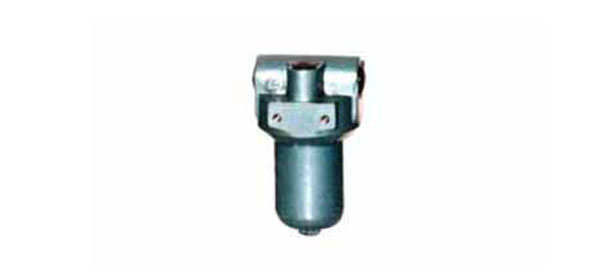

High Pressure Filters are designed for operating pressures of 250 & 400 bar. High Pressure Filters at times are selected without a bypass valve to prevent contaminated oil flow into sensitive control mechanisms. In such cases, it is recommended that the filter element selected, should withstand high differential pressure. Filter elements with differential pressure ratings of 60, 160, and 330 BAR are available on request. These filters are suitable for all mineral oils, synthetic hydraulic liquids, and lubricating oils.

All filters are manufactured & tested in accordance with DIN/ISO standards.

Technical Details :

Nominal Pressure: 250 Bar & 400 Bar

Nominal Flowrate: 10 to 460 L/min.

Filter head: 250/400 L 10-460 high strength GGG 40 casting

Filter bowl: 250/400 L 10-460 carbon steel

Seals: Nitrile (Viton or other on request)

End Caps and Center Tubes: Plated

Differential Pressure: ^p 30 bar (standard) 60, 160 & 330 bar on request

Temperature Range: -20°C to + 100°C (150°C on request)

Pressure Drop Indicator: Optical or Optical cum Electrical

By Pass Valve: 5 Bar & 7 Bar.

Permanent magnet: Ring magnet 250/400 L 10-460
