Drum Lifter Carrier Stacker

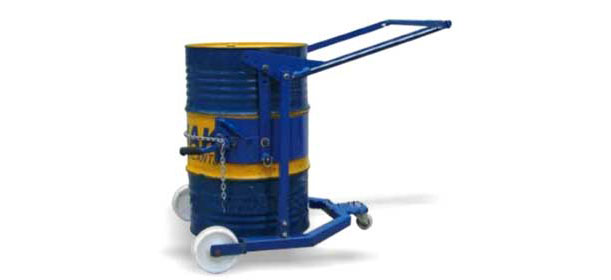

DRUM LIFTER (LIFTER-TILTER-CARRIER)

Remarkable versatility, drum lifter transport rotate, lifts and drains fully loaded drums. It carries the full weight.

Drum Lifter Features :

Drum lifter raised, transports, rotates, tilts and drains fully loaded drums. It carries the full weight of the drum. Dual, finger trip operated locks secure the raised drum. It can lock a drum in the vertical position to avoid spills or horizontal position for draining through a faucet. When unlocked, the drum may be turned end-over-end to agitate contents or tipped and held manually at any angle, and it is very simple to move and steer. Drum Ltfter uses high strength lifting components. Drum Lifters is secured by high strength, wear resistant chain. The chain tightening ratchet and spring loaded pawl assembly has been designed with specially contoured teeth and safety features for reliability and eases of use. It can be used with standard 210 Ltrs M. S. Drum.

HYDRAULIC DRUM CARRER Features / Benefits Smooth rolling, strong and durable dollies easily transport 30 or 55 gallon drums. Simple design is easy to use; unit features a manual mechanical hand ratchet crank lift mechanism.

STEEL DRUM DOLLIES Features / Benefits Easy & safe Durm Carrier with Hydraulic System to lift & Transport the MS/Plastic Drums by a single person from one place to another in big godowns, production areas etc. it can also put the Drum from floor to Pallet. Two big size rear wheels are provided with two bearings each & one front wheel swiveling type is also with double ball bearings for smooth running. Model No. Lifting Capacity Lifting Height Max. Drum Diameter  Max. Drum Length Length Width Height Appox. Weight HDC-250  250 Kgs   280 mm 572 mm  915 mm 845 mm  800 mm 1105 mm 40/42 Kgs   HYDRAULIC DRUM STACKER Model No. Capacity 'Q' Min. Height 'H' Load Center 'C' Overall Length 'A' Overall Width 'B' Max. Lift Height 'H1'   Overall Height Fork Raised 'H2' Overall Height Fork Lowered 'H3' Lift Speed with/ without load Appox. Weight HFH-30   300 Kgs   385 mm 570 mm   1520 mm   1050mm 2100 mm 1955mm 1273mm   22/25 mm/rime 131 Kgs.
