Swing Cylinder Double Acting Top Bottom Mounting

IMPORTANT

• Actual clamping takes place only when the Cylinder has completed its 90o swing stroke.
• Clamping allowed only in clamping stroke not in swing stroke .
• Do not exceed max. flow rate. If flow rates are exceeded, swing cylinder indexing mechanism may be permanently damaged.

DESCRIPTION : These Hydraulic Clamping elements are pull type swing cylinders, wherein a part of the total stroke is used to swing the arm (stroke to swing). The shorter part is available as clamping stroke. These swing clamps are having a special feature during the rotation (swing), it covers 20mm stroke and thereafter it travels vertically for 10mm clamping stroke. The total stroke is 30mm.

NOTE

• Refer general design notes before selection &use.
• CWModel dimensions are same asCCWmodel dimensions.
• Refer accessories sheet page No. X2 for clamp arm details.
• Given forces are for the standard arm lever. Pressure and flow
• should be reduced if clamp arm length is increased (Refer Graph sheet No. G1).
• Ordering specification for seal kit. Add prefix "SK" to the model Number.

FEATURES

• Min./Max. Operating Pressure 10/250 bar.
• Large clamping range.
• Total stroke 30 mm. Swing stroke 20 mm. Vertical stroke 10 mm.
• Arm swing will be 90 +2
• 360 adjustable arm location.

Important

• If the system flow rate exceeds, use one way flow control valve in the upstream hydraulic lines.
• Length of Clamping arm, weight of Clamping arm, max. Permissible flow rate and working pressure are all important. Refer graphs for arm length and working pressure.
• Keep weight of Clamping arm to a minimum.

Swing Clamp Bottom Flange Mounting Double Acting

IMPORTANT

• Actual clamping takes place only when the Cylinder has completed its 90o swing stroke.
• Clamping allowed only in clamping stroke not in swing stroke .
• Do not exceed max. flow rate. If flow rates are exceeded, swing cylinder indexing mechanism may be permanently damaged.

FEATURES

• Min./ Max. Operating Pressure 10/250 bar.
• Large clamping range.
• Total stroke 30 mm. Swing stroke 20 mm. Vertical stroke 10 mm
• Arm swing will be 90 +2
• 360 adjustable arm location.

DESCRIPTION

These Hydraulic Clamping elements are pull type cylinder, wherein a part of the total stroke is used to swing the piston (stroke to swing). The shorter part is available as clamping stroke. These swing clamps are having a special feature during the rotation (swing), it covers 20mm stroke and thereafter travels vertically for 10mm clamping stroke. The total stroke is 30mm.

NOTE

• Refer general design notes before selection & use.
• CW Model dimensions are same as CCW model dimensions.
• Refer accessories sheet page No. X2 for clamp arm details.
• Given forces are for the standard arm lever. Pressure & flow should be reduced if clamp arm length is increased (Refer Graph sheet No. G1).
• Models with overload protection are available as special. Dimensions are different. Contact Quicloc.
• Ordering specification for seal kit. Add prefix "SK" to the model Number.

Important

• If the system flow rate exceeds, use one way flow control valve in the upstream hydraulic lines.
• Length of Clamping arm, weight of Clamping arm, max. Permissible flow rate and working pressure are all important. Refer graphs for arm length and working pressure.
• Keep weight of Clamping arm to a minimum.

Top Flange Mounting Swing Clamp Double Acting

Important

• Actual clamping takes place only when the Cylinder has completed its 90o swing stroke.
• Clamping allowed only in clamping stroke not in swing stroke .
• Do not exceed max. flow rate. If flow rates are exceeded, swing cylinder indexing mechanism may be permanently damaged.

DESCRIPTION

These Hydraulic Clamping elements are pull type swing cylinder, wherein a part of the total stroke is used to swing the arm (stroke to swing). The shorter part is available as clamping stroke. These swing clamps are having a special feature during the rotation (swing), it covers 10mm stroke and thereafter travels vertically for 14mm clamping stroke. The total stroke is 24mm.

FEATURES

• Min./ Max. Operating Pressure 20/180 bar.
• Large clamping range.
• Double acting rates.
• Very compact cylinder design.
• 360o adjustable arm location
• Arm swing will be 90o +0.2o
• Total stoke 24mm. Swing stoke 10mm. Clamp stoke 14mm.

Important

• If the system flow rate exceeds, use one way flow control valve in the up stream hydraulic lines.
• Length of Clamping arm, weight of Clamping arm, max. Permissible flow rate and working pressure are all important. Refer graphs for arm length and working pressure.
• Keep weight of Clamping arm to a minimum.

Bottom Flange Mounting Swing Clamp Double Acting

Important

• Actual clamping takes place when the Cylinder has completed its 90o swing stroke.
• Clamping allowed only in clamping stroke not in swing stroke .
• Do not exceed max. flow rate. If flow rates are exceeded, swing cylinder indexing mechanism may be permanently damaged.

DESCRIPTION

These Hydraulic Clamping elements are pull type swing cylinder, wherein a part of the total stroke is used to swing the arm (stroke to swing). The shorter part is available as clamping stroke. These swing clamps are having a special feature during the rotation (swing), it covers 10mm stroke and thereafter travels vertically for 14mm clamping stroke. The total stroke is 24mm.

FEATURES

• Min./ Max. Operating Pressure 20/180 bar.
• Large clamping range.
• Double acting rates.
• Very compact cylinder design.
• 360o adjustable arm location
• Arm swing will be 90o +0.2o
• Total stoke 24mm. Swing stoke 10mm. Clamp stoke 14mm.

NOTE

• Refer general design notes before selection & use.
• CW Model dimensions are same as CCW model dimensions.
• Refer accessories sheet page No. X2 for clamp arm details.
• Given forces are for the standard arm lever. Pressure & flow should be reduced if clamp arm length is increased (Refer Graph sheet No. G1).
• Models with overload protection are available as special. Dimensions are different. Contact Quicloc.
• Ordering specification for seal kit. Add prefix "SK" to the model Number.

Important

• If the system flow rate exceeds, use one way flow control valve in the up stream hydraulic lines.
• Length of Clamping arm, weight of Clamping arm, max. Permissible flow rate and working pressure are all important. Refer graphs for arm length and working pressure.
• Keep weight of Clamping arm to a minimum.

Swing Clamp Top Flange Mounting Double Acting

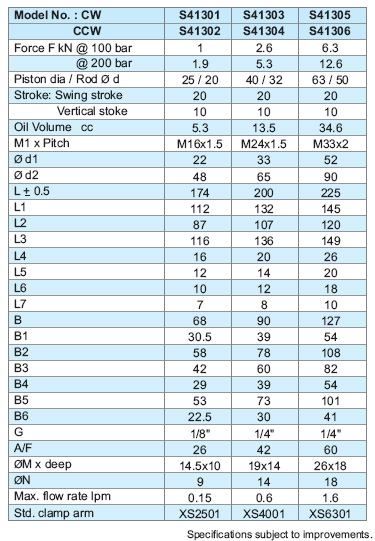

SPECIFICATION :

• Type : DoubleActing Hydraulic Cylinder.
• Bore Dia = 25 mm, Rod dia = 20mm
• Swing Stroke = 20mm; Vertical Stroke = 10mm
• Max. Pressure 200 bar for arm length 50 mm at clamp force 1.75 kN
• Max. Flow rate lpm-0.15
• Oil volume cc=5.3
• Medium : Hydraulic Oil (servo system HLP46/HLP68)

IMPORTANT :

• Actual clamping takes place only when the Cylinder has completed its 90o swing stroke
• Clamping allowed only in clamping stroke not in swing stroke
• Do not exceed max. flow rate. If flow rates are exceeded, swing cylinder indexing mechanism may be permanently damaged.

FEATURES

• Min/Max. operating pressure 20/150 bar.
• Large clamping range.
• Total stroke 30mm. Swing stroke 20 mm. Vertical stroke 10 mm.
• Arm swing will be 90o +0.2o
• 360 adjustable arm location

DESCRIPTION

These Hydraulic Clamping elements are pull type swing cylinders, wherein a part of the total stroke is used to swing the arm (stroke to swing). The shorter part is available as clamping stroke. These swing clamps are having a special feature during the rotation (swing), it covers 20 mm stroke and thereafter it travels vertically for 10 mm clamping stroke. The total stroke is 30 mm.

NOTE

• CW Model dimensions are same as CCW model dimensions.
• Refer general design notes before selection & use.
• Refer accessories sheet page no. X2 for clamp arm details.
• Given forces are for the standard arm lever. Pressure and flow should be reduced if clamp arm length is increased (Refer Graph sheet no. G1 and graph 1)
• Ordering specification for seal kit. Add prefix "SK" to the model Number

IMPORTANT :

• If the system flow rate exceeds, use one way flow control valve in the upstream hydraulic lines
• Length of Clamping arm, weight of Clamping arm, max. Permissible flow rate and working pressure are all important. Refer graphs for arm length and working pressure.
• Keep weight of clamping arm to a minimum.
