Mini Threaded Body Cylinder Single Acting Double Acting

IMPORTANT

• Threaded body allows exact positioning and easy installation
• Keep back pressure in the system and in the line to minimum for smooth working of cylinder.

DESCRIPTION

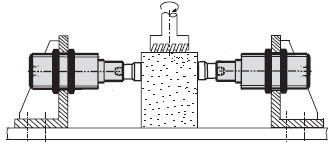

These cylinders can be threaded directly into manifold/ fixture body. Suitable for positioning, clamping or ejecting the work piece. These cylinders can be used in fixtures where space is a constraint. Special aluminium washer provides self sealing. Aluminium washer is included in the delivery.

FEATURES

• Min./ Max. Operating Pressure 10/250 bar.
• All models have spring return action.
• Oil port is provided at the bottom to conserve space within the fixture.
• Cylinders are available with Piston type & Ram type.

NOTE

• Refer general design notes before selection & use.
• For ring nuts refer separate accessories sheet page No. X1
• Ordering specification for seal kit. Add prefix "SK" to the model Number.

Mini Threaded body Cylinder Double Acting

DESCRIPTION

Double Acting Mini Threaded Cylinders are designed for heavy duty Hydraulic clamping forces. Hydraulic inlet port is at the bottom and declamping port is at the side.

FEATURES

• Min./ Max. Operating Pressure 10/250 bar.
• Male & Female threaded rod ends.
• Flange mounting, Foot mounting, Ringnuts are available as accessories. (Refer accessories sheet).

NOTE

• Refer general design notes before selection & use.
• For mounting selections refer separate Accessory Sheet page No. X1 & X2
• Ordering specification
