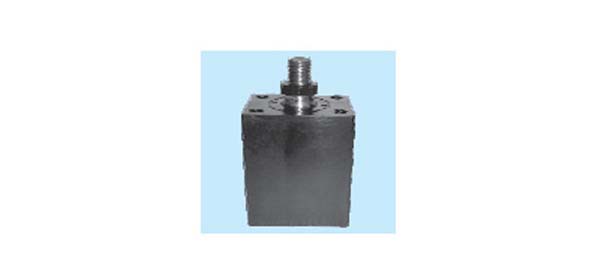

Block Cylinder Single Acting

DESCRIPTION :

Block Cylinders are designed to use for applications like Clamping, Pushing, Lifting, Pulling, Positioning. It can be mounted vertically or horizontally through vertical or horizontal mounting holes. Vertical threaded mounting holes are also available. Each cylinder is available in short or long stroke.

Features / Benefits

• Male / Female threaded piston rod.
• Min./ Max. Operating Pressure 10/250 bar

NOTE

• Refer general design notes before selection & use.

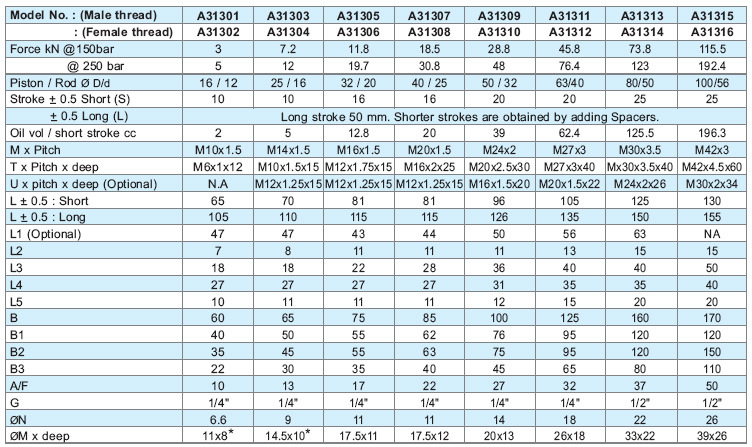

• Standard strokes are given. By adding spacers in long stroke cylinders, short strokes can be obtained.

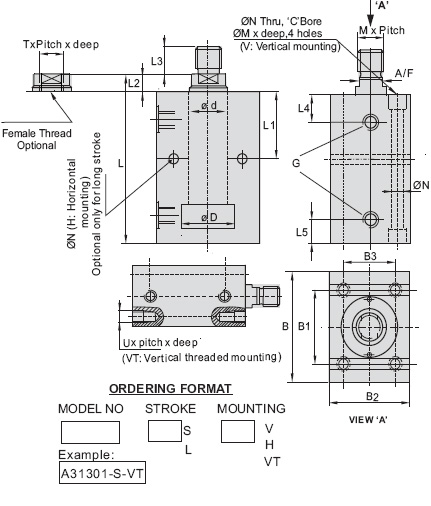

• Female threaded rod end, Horizontal mounting & Vertical threaded mounting holes are optional.
• Ordering specification for seal kit. Add prefix "SK" to the model Number.

Application : These jacks are an excellent choice for maintenance, positioning, bending pressing. Ideal for wide range of applications at construction site, mills, railway workshops, power plants and industrial maintenance.
